ENERVAC
About Enervac
About Clark-Reliance
Tracing its roots back to 1885, when Indiana-based Bowser Inc. began the manufacture of a coal oil dispenser, ENERVAC has enjoyed a rich history, marked by a commitment to providing customers with products designed to exceed their expectations.
Bowser Inc. was purchased by a large oil purification company in 1969. In 1978 ENERVAC was formed and acquired the specialized fluid handling and air processing equipment lines from this company.
Through the development of high efficiency, cost-effective engineered equipment, ENERVAC helps solve one of the most important issues facing industry… resource recovery. Environmental responsibility has rapidly become more than a need in today’s business environment… it has become a demand, often legislated and always expected. ENERVAC has a strong tradition in the development of technologies and systems to manage liquid waste resources effectively and efficiently.
Transformer Oil Purification Systems

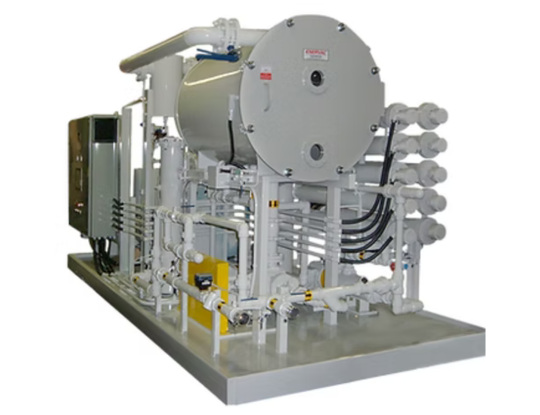

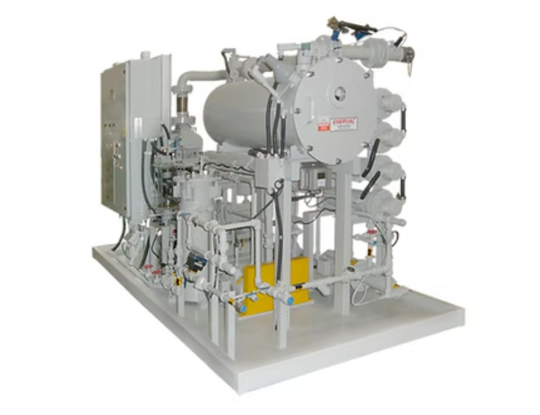

Transformer Oil Purifier / Degasification (E865A)
ENERVAC’s (transformer oil purifier) high vacuum process is used for the dehydration and
degasification of electrical insulating liquids including transformer oils, polybutene and
silicone fluids, to increase and maintain their dielectric strength. The processing includes
the removal of free and soluble water, dissolved air and gases and particulate matter.
The most important applications of high vacuum (transformer oil purification) degasifiers
(transformer oil purifiers) are in the field of extra high voltage transmission and in the
manufacture of electrical apparatus.
In addition, the high vacuum process is used in the degasification of cable oils including
polybutene. Outside of the electrical industry, this process is used for electronic and radar
equipment, vacuum pump sealing oils, brake fluids and refrigeration oils – including phosphate
esters and silicones. Mobile and stationary units are available in sizes 50 to 6000 GPH
(190 to 23,000 l/h).
Transformer Oil Purifier / Degasification (EHV)
The most important applications of high vacuum degasifiers are in the field of extra high
voltage transmission and in the manufacture of electrical apparatus for it. In addition,
the high vacuum process is used in the degasification of cable oils including polybutenes.
Outside of the electrical industry, this process is used for dehydration and degasification
of oils for radar and electronic equipment, vacuum pump sealing oils, brake fluids,
refrigeration oils—including phosphate esters and silicones.
Enervac offers the EHV Vacuum Oil-Purifier series designed for maximum efficiency in your
operations… performance tested by experts, requiring minimum maintenance, and providing long,
trouble-free service.
Backed by the full resources of Enervac’s technical specialists, plus “know-how” and thorough
research, your Vacuum Oil-Purifier is unique. Designed for unattended operation and suitable
for operation on energized equipment—complete monitoring equipment is also available.

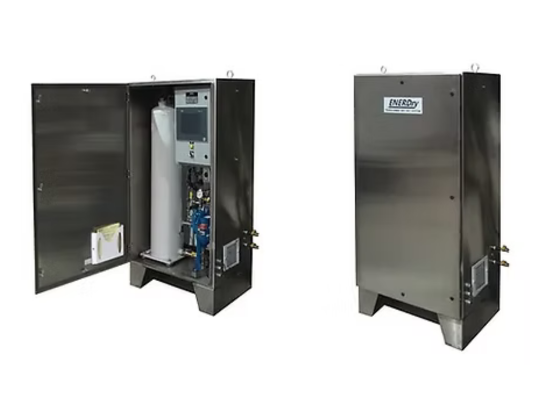

ENERDry Transformer Dry-Out System
Transformers and their paper insulation have a primary enemy – water. Water can be removed from a transformer using a vacuum dehydration process. Now, however, an easier and less expensive method can be used to remove the water from the transformer oil and its paper insulation. Transformers that have 5% moisture or higher can be dried to acceptable levels without taking the transformer out of service.

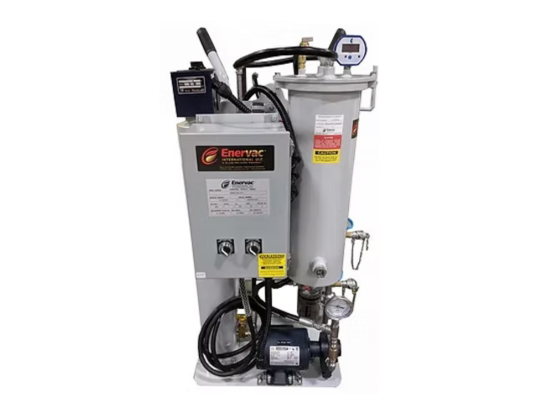

Portable Transformer Oil Purifier / Degasifier (E865C)
This lightweight Mini Degasifier cart uses the latest high vacuum technology to filter, dehydrate, and degasify insulating and dielectric fluids. The unit is ideally suited for processing oil in pole-mounted transformers, bushings, conservators, individual oil barrels, and other similar small fluid quantities.
- Mounted on a convenient cart with 10" (250 mm) pneumatic tires for easy movement
- Connection provided for optional vacuum controller
- Suitable for unattended operation
- Vacuum blank-off rating <20 microns (0.025 mbar)
- Uses Enervac's exclusive accelerator elements for high performance
- Comes complete with 10-foot (3 m) power cord and hoses

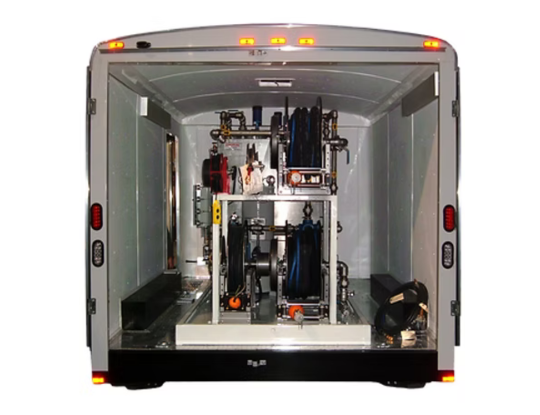

Mobile Circuit Breaker Oil Purifier (E858M)
The Enervac Model E858M Mobile Oil Filter Unit is ideal for extending oil life by removing moisture, particulate, and carbon from dielectric fluids and oils used in transformers, circuit breakers, voltage regulators, and switchgear. The E858M is fully mobile and certified for highway travel. It can be used for retrieving fluid, flushing, and refilling all oil-filled equipment. Operator-friendly design and easy maintenance make the E858M an efficient and reliable solution. Save disposal costs of carbon-contaminated oil by restoring it to like-new condition with the Enervac Model E858M. Available in multiple sizes and custom designs to suit your application.
- Extends oil life by removing moisture, particulate, and carbon
- Suitable for transformers, breakers, voltage regulators & switchgear
- Completely mobile and certified for highway travel
- Designed for retrieving, flushing & refilling oil-filled equipment
- Operator-friendly design with easy maintenance
- Restores carbon-contaminated oil to like-new condition
- Available in various sizes & special custom designs

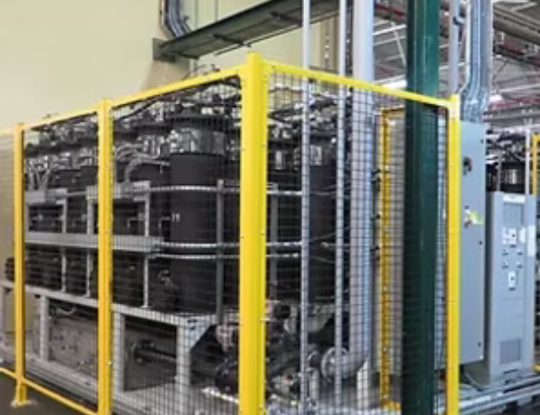

Transformer Oil Regeneration Plant (E575R)
ENERVAC’s Transformer Oil Regeneration Plant provides all the benefits of Fuller’s Earth
treatment without the problems of contaminated clay disposal or the high cost of replacing
saturated earth. The regeneration media typically lasts up to 300 times longer than Fuller’s
Earth and can be safely disposed of in a normal landfill at the end of its useful life.
Ideally suited for high-volume processing, the plant is available in both mobile and
stationary configurations.
- All benefits of Fuller’s Earth treatment without disposal issues
- Regeneration media lasts up to 300× longer than Fuller’s Earth
- Environment-friendly disposal in regular landfill sites
- Designed for large-volume oil regeneration
- Available in mobile and stationary versions

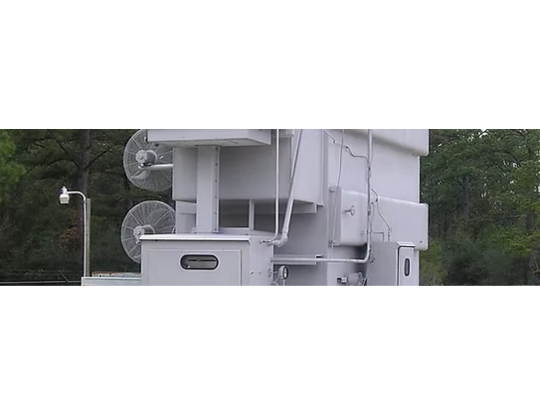

On-Line Tap Changer Oil Purifier (TFS-2)
ENERVAC developed the On-Line Tap Changer Oil Purifier (TFS-2) to reduce carbon, water, and metallic particles in tap changers. These contaminants are generated by arcing contacts during load transfer from tap-to-tap within the tap changer compartment. By using this system, operating and maintenance costs are reduced, and overall system reliability is significantly improved. Load tap changer issues can be effectively minimized through continuous on-line oil filtration provided by ENERVAC’s TFS-2 system.
- Reduces carbon, water & metallic particles in tap changer oil
- Prevents contamination caused by arcing contacts
- Lowers operation & maintenance costs
- Enhances system reliability & performance
- Continuous on-line oil filtration for improved efficiency

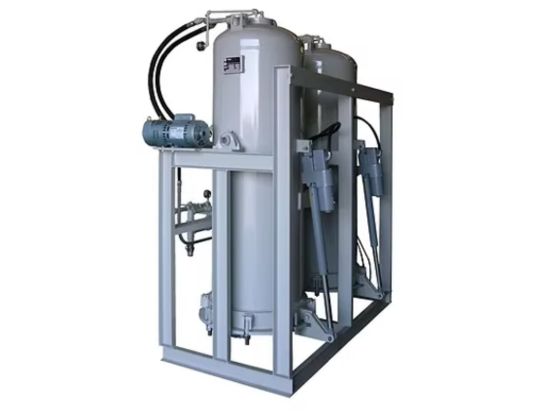

Insulating Oils Purification Fuller’s Earth Filter (E575A)
Fuller’s Earth oil filters are used to remove acids and soluble, surface-acting contaminants through adsorption. Treatment with Fuller’s Earth increases the oil’s Interfacial Tension (IFT) and reduces the Power Factor (PF) to desired levels. When water and volatile acids are removed from oil through a prior vacuum process, the adsorptive capacity of Fuller’s Earth is greatly enhanced for removing remaining soluble contaminants. The system ensures positive protection, resulting in migration-free, sparkling clean effluent. Acids, gums, resins, and other surface-acting contaminants are effectively trapped and retained within the media.
- Removes acids & soluble contaminants by adsorption
- Increases Interfacial Tension (IFT) of oil
- Reduces Power Factor (PF) to optimal levels
- Enhanced performance after prior vacuum dehydration
- Provides clean, contaminant-free effluent
- Traps acids, gums, resins & other soluble impurities
- Available in 1000, 2000 & 3000 lb. stationary towers (single or dual)

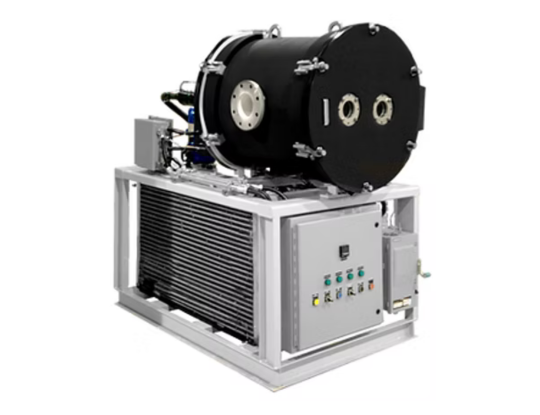

Cascade Refrigerated Cold Trap (E861B)
The unit is designed to trap condensable vapours—primarily water—during transformer drying
operations. With pressure capabilities in the low micron range and a plate temperature of
-85ºF, the system enables fast and efficient dry-out of “wet” transformers.
This self-contained unit features air-cooled compressors mounted on a durable fabricated steel
base plate. It includes a cascade refrigeration system, a vacuum chamber, and a control cabinet
housing starters, relays, switches, and a control transformer. Isolation valves are provided,
and a by-pass system allows continued evacuation during the defrost cycle.
- Traps condensable vapours during transformer drying
- Capable of low micron pressure range
- Plate temperature as low as -85ºF for fast transformer dry-out
- Fully self-contained with air-cooled compressors
- Includes cascade refrigeration system & vacuum chamber
- Control cabinet with starters, relays, switches & transformer
- Isolation valves included for safe operation
- Built-in by-pass for evacuation during defrost cycle

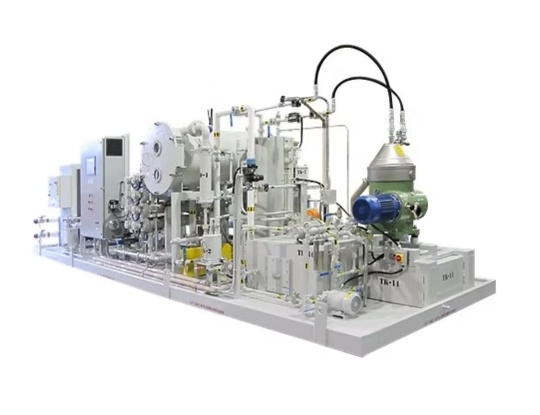

Polychlorinated Biphenyl (PCB) Decontamination System
The MPU series is designed for the decontamination of electrical insulating oils contaminated
with low levels of Polychlorinated Biphenyls (PCBs), also known as "Askarels". PCBs were first
synthesized in 1881 and became widely used in transformers due to their excellent stability,
fire resistance, insulating properties, and low volatility.
Unfortunately, because PCBs are extremely stable organic compounds, they persist indefinitely
in the environment and accumulate in the fatty tissue of living organisms. These pollutants are
so toxic that even one gram can contaminate up to one billion litres of water. Approximately
635,000,000 kg of Askarels were produced in North America before the ban on PCB production in 1977.
- Designed for decontaminating oils with low PCB levels
- Effective for electrical insulating oils contaminated with Askarels
- PCBs were widely used due to stability, fire resistance & insulation
- Persistent organic pollutants that remain indefinitely in the environment
- Highly toxic—1 gram can contaminate 1 billion litres of water
- Over 635 million kg produced in North America before 1977 ban
SF6 Gas Servicing Equipment

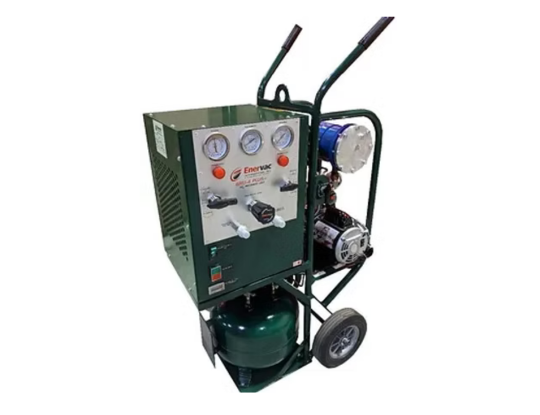

SF6 Gas Recovery Unit (GRU-4 PLUS)
ENERVAC’s latest SF6 Gas Recovery Unit integrates an advanced, high-pressure, totally oil-less
compressor capable of achieving 500 psi (34 bar). This upgraded technology enables reliable
liquefaction of SF6 gas even in warm climates, including the southern United States.
The GRU-4 PLUS is designed for servicing small-volume SF6 equipment and supports all necessary
gas handling operations, including gas removal, temporary storage, contaminant filtration,
purification, drying, evacuation, and re-pressurization. It is also ideal for consolidating
partially used SF6 cylinders into a single bottle.

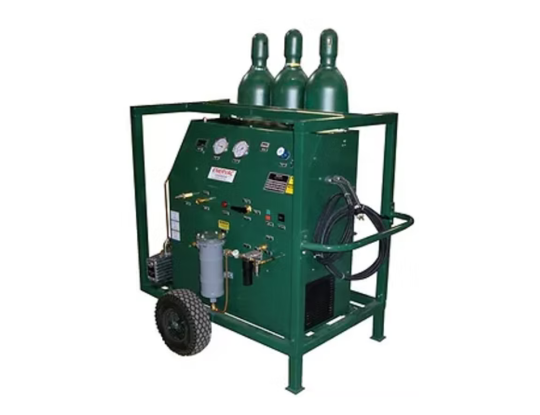

SF6 Gas Recovery Unit (GRU-7)
Whether you need fast processing speed, better than 99.6% SF6 recovery, a 100% oil-less
system, unlimited storage capacity, simple single-valve operation, or portability, the
Enervac GRU-7 delivers exceptional performance.
The GRU-7 was developed for customers who required greater storage and recovery capability
than smaller handcart units could provide—yet without the bulk, size, and higher cost
associated with large skid-mounted or trailer-mounted systems.

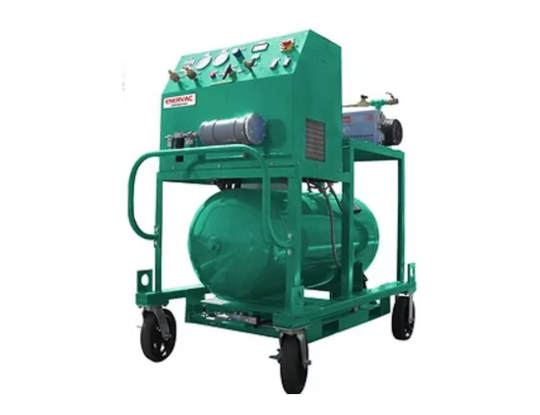

SF6 Gas Recovery Unit (GRU-8)
Whether you are looking for fast processing speed, better than 99.9% SF6 recovery, a 100% oil-less system, unlimited storage capacity, easy single valve operation, or portability, you will find it with the Enervac GRU-8. We developed the GRU-8 for our customers who found they needed more storage and recovery capacity than smaller handcart mounted units, but without the bulk and high price of a large skid or trailer mounted unit.
SF6 Gas Transfer Unit (GTU)
From the makers of the GRU’s, the world’s best selling line of portable SF6 recovery systems, ENERVAC proudly brings you the GTU gas transfer unit. Designed as a low cost solution to recovering, consolidating and transferring Sulfur Hexaflouride, the GTU is an essential tool for servicing small volume SF6 equipment. All processes required for servicing SF6 equipment can be performed including gas removal, contamination filtration, gas purification, gas drying and manual equipment re-pressurization. The GTU is ideally suited for consolidating partially used SF6 bottles into one bottle or recovering left over gas from larger carts.

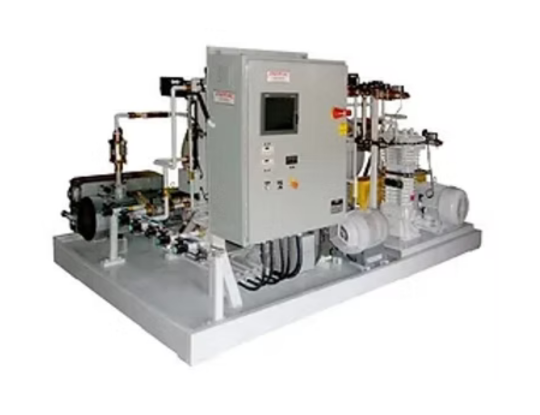

SF6 Gas Servicing Cart (E736A)
The ENERVAC SF6 Gas Servicing Cart is designed for the processing of Sulfur Hexafluoride used in high voltage metal-clad switch gear, bus ducts, accelerators, circuit breakers and transformers that are charged during normal operation with SF6 gas as a dielectric. The Cart will perform the following functions:
- Removal of SF6 gas from equipment, liquefaction and storage of the gas in the on-board storage tank.
- The Servicing Cart evacuates the serviced equipment for dry out prior to re-charging.
- Re-evaporating SF6 gas and refilling evacuated equipment.
- Purification of SF6 gas by absorption and removal of decomposition products and moisture.
- All functions can either be fully automatic, controlled by a programmable controller or manual.

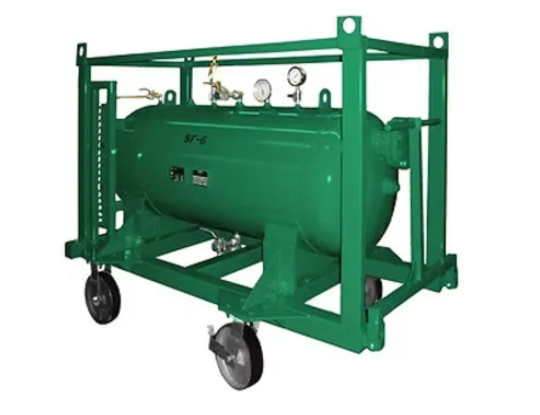

SF6 Gas Storage Tank (E736T)
Various sizes of liquid SF6 storage tanks are available. Enervac’s stationary or mobile Gas Storage Tanks are designed, fabricated and registered to the ASME code. Standard features include: Liquid level gauge, ASME relief valve, pressure gauge, temperature gauge, tank inspection flange, inlet and outlet valves. Mobile tanks are mounted on 12″ (30 cm) casters with a tow bar.
Features:
- Sizes to suit every need, up to 4,000 lbs (1,800 kg)
- Tanks are certified to ASME Code
- Stationary or Mobile units available
- Internals are specially coated to prevent corrosion

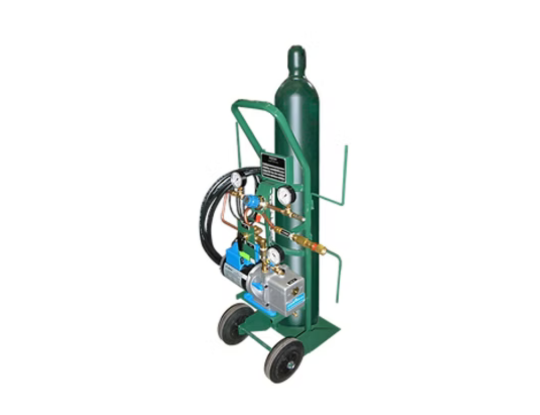

SF6 Gas Evacuation & Refill Unit (ERFU-2)
A lightweight, yet rugged, portable unit for the evacuation of gas switchgear, or breaker compartments; and regulated filling using standard SF6 gas cylinders.
Applications:
- Evacuate air and moisture prior to filling
- Regulated filling of SF6 equipment
Features:
- Single valve operation
- Large tires for easy movement over gravel yards
- Permanently mounted high capacity, high vacuum pump
- User adjustable regulated gas refilling
- Integral vacuum gauge
- 3-way ball valve for simple switching between evacuation and refilling
- Comes complete with 9.8 ft / 3 m hoses and power cable
SF6 Gas Analyzers and Accessories

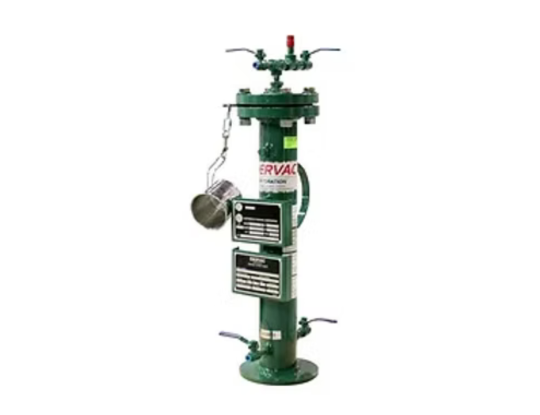

SF6 Purifier
- Purifies SF6 Gas in amounts up to 2,500 lbs (1,130 kg).
- Ideal for purifying badly decomposed SF6 Gas.
- Compatible with all ENERVAC SF6 gas servicing equipment.
- Easy chemical and filter change out.
Zerowaste® Rapide Ultrafast IR SF6 Analyser
- Most accurate, stable and repeatable readings obtainable in the market.
- The easiest to use – 1 button operation.
- Up to 8 parameters at a time.
- Fastest readings, lightest instrument in the market.

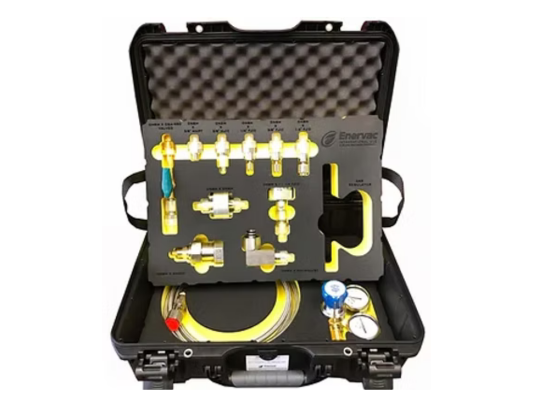

SF6 Fittings Kits
Enervac SF6 fittings kits eliminate the constant search for various SF6 fittings when recovering SF6 gas from circuit breakers and switchgear. We’ve included the most commonly used fittings and adapters which connect to various manufacturers’ circuit breakers including ABB, Alstom, Siemens, General Electric and others.
- Comes in rugged transport cases with double locking latch
- Unbreakable, watertight, airtight, dust-proof, chemical resistant & corrosion proof cases
- Fittings stored in heavy-duty foam inserts with individual labeling
- Uniquely packed for easy storage and identification
- DN-8 and DN-20 fittings kits available
- Typically kept in stock for quick delivery
- Designed and manufactured in Europe
- Rated for full vacuum and fully leak-proof for high-pressure applications
Don’t get stuck searching for SF6 fittings and adapters. Enervac SF6 fittings are designed and manufactured in Europe, rated for full vacuum and are fully leak-proof for high pressure applications.

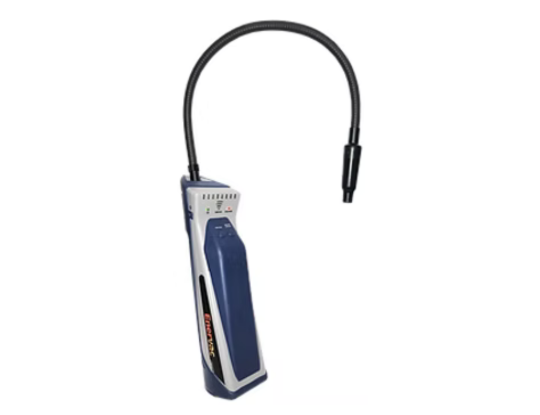

SF6 Leak Detector
Enervac’s next generation SF6 Gas Leak Detector uses an innovative infrared absorption sensing cell that is extremely sensitive to SF6. The SF6 Gas Leak Detector maintains that sensitivity over time for consistent and reliable performance.
- Charging status indicator
- Sensor failure indication
- Lithium-Ion batteries
- Easy-to-use unit with high durability
All this in an easy-to-use unit with the quality and durability you’ve come to expect from Enervac.
