About Hyoda

Hyoda's history started when the temperature control technology was developed. Since then, hyoda has been studying continuously to contribute to the society. Since the establishment in 1917, hyoda has been continuously developing and manufacturing thermometers and other measurement and control devices. The hyoda brand was born in Osaka, and hyoda is now delivering various heat control technologies to various users in not only Japan but also overseas countries. The measuring instruments with the hyoda brand are now exclusively used in the heavy industries (heavy electric equipment, nuclear power plants, ships, petrochemical plants, etc.), light industries (textile industry, dye industry, food industry, etc.), and household articles (microwave ovens, cookware, etc.).

Dial Thermometer

Dial Thermometer

Temperature Range -35℃ to 150℃
Contact Rating AC100V – 0.4A
AC200V – 0.2A
Waterproof Rating IP65

Gas Density Switch

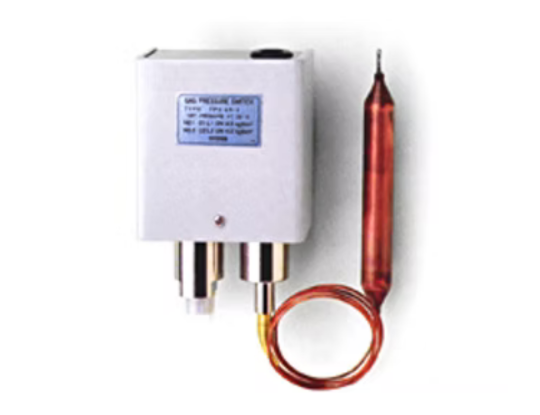

TPS Type SF6 Gas Pressure Switch

TPS Type SF6 Gas Pressure Switch

Number of Contacts 1~2
Contact Rating AC125V, 250V / 15A
DC125V, 250V / 0.5A
Rated Pressure Sealing Pressure: 0.50 MPa
Alarm Pressure: 0.45 MPa
Locking Pressure: 0.40 MPa
Temperature Sensitive Area Φ19 × 150ℓ

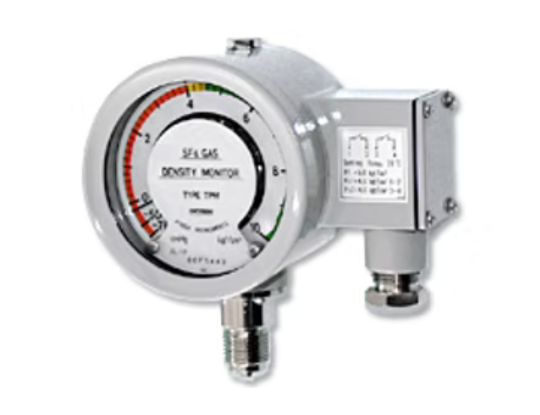

TPM Type SF6 Gas Pressure Switch

TPM Type SF6 Gas Pressure Switch

Range -0.1 ~ 1 MPa (etc.)
Contact 1 ~ 3 contacts
Contact Rating DC 30W
Connection Nipple removal / Flange connection

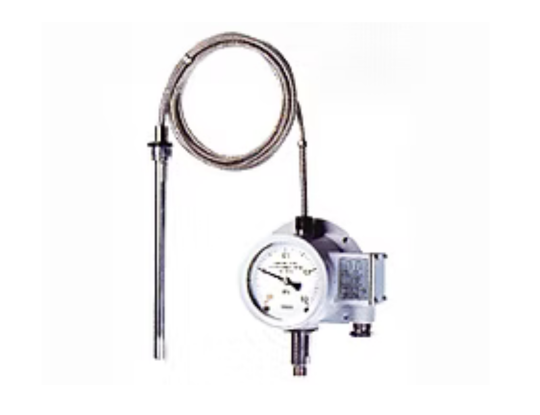

TPR Type SF6 Gas Pressure Switch

TPR Type SF6 Gas Pressure Switch

Range -0.1 ~ 0.3 MPa
Contact Rating AC152V / 5A
AC250V / 3A
Temperature Sensitive part with or without screw
Waterproof Rating IP65

Pressure Gauges

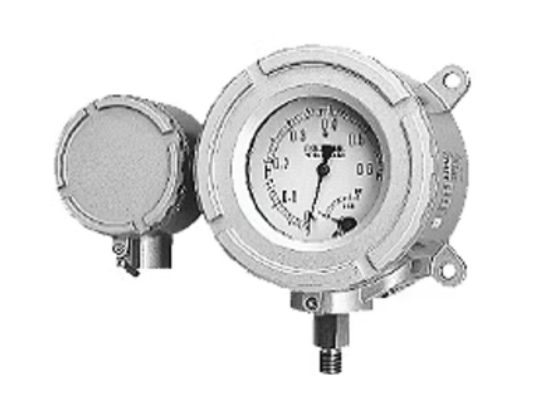

Explosion-proof Pressure Gauge (Pressure Switch)

Explosion-Proof Pressure Gauge (Pressure Switch)

Case Silver aluminum alloy
Size Φ60, Φ75, Φ100, Φ150
Share Brass or stainless steel
Bourdon Tube Stainless steel
Connection Shape T, U, S
Connecting Screw G or R — 1/4, 3/8, 1/2
Explosion-proof Differential Pressure Gauge (Differential Pressure Switch)

Explosion-Proof Differential Pressure Gauge (Differential Pressure Switch)

Case Silver aluminum alloy
Share Stainless steel
Bourdon Tube Stainless steel
Size Φ60, Φ75, Φ100, Φ150
Connection Shape T, U, S
Connecting Screw G or R — 1/4, 3/8, 1/2
Pressure Gauge with Contact

Pressure Gauge with Contact

Case Aluminum alloy
Share Brass or stainless steel
Bourdon Tube Stainless steel
Size Φ100, Φ150
Connection Shape Type A, Type B, Type D
Connecting Screw G or R — 3/8, 1/2
