About Shalimar Valves

Since its inception in 1977, SHALIMAR has continually worked to develop innovative and quality products and has earned a reputation for technical excellence in the Valve Industry. We have been accredited with dual ISO 9001, API 6D, API-Q1, API 600 & CE Marking. Shalimar is one of the pioneers of the Indian Valve industry. Our major products include carbon steel valves, stainless steel valves, strainers and special valves.

GATE VALVES

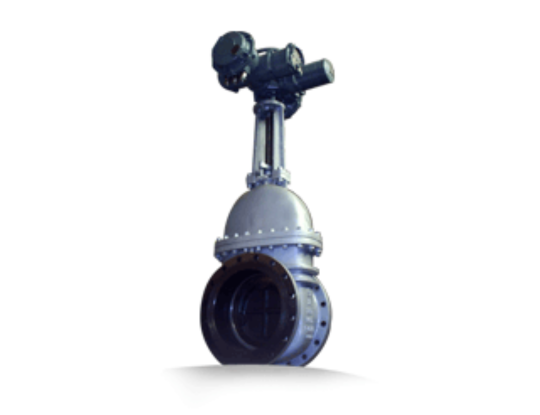

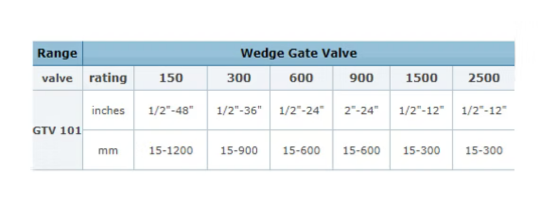

Wedge Gate Valves GTV 101 Series Wedge Gate Valve Size Chart

WEDGE GATE VALVES (GTV 101 Series)

Design Standards:
API 600 / API 6D / API 603 / BS 1414

Face to Face:
ASME B 16.10 / API 6D

Flanges:
ASME B 16.5 / MSS SP 44 / ASME B 16.47

Butt Welding:
ASME B 16.25

Testing:
API 598 / API 6D

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available based on service requirements.

Operators:
Handwheel, Gear, Chain Wheel Pulley, Electrical Motor, Pneumatic Actuator.

Notes:
• Oval Flat Body Bonnet Joint for 150 lbs
• Male-Female Body Bonnet Joint for ratings ≥ 300 lbs
• RTJ Body Bonnet Joint for ratings ≥ 1500 lbs (standard)
• RTJ Joints available upon request

Optional Accessories:
Electrical & Geared Drive, Bypass Arrangement, Floor Stand

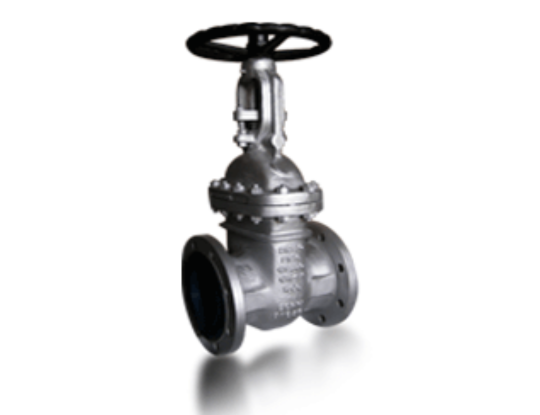

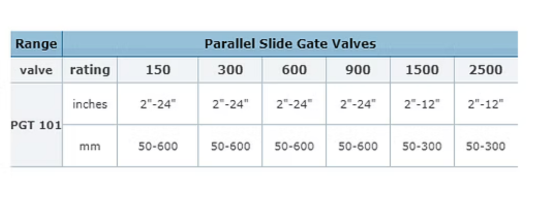

Parallel Slide Gate Valves PGT 101 Series Parallel Slide Gate Valve Size Chart

PARALLEL SLIDE GATE VALVES (PGT 101 Series)

Design Standards:
ASME B 16.34-2004 / API 6D / DIN

Face to Face:
ASME B 16.10 / DIN

Flanges:
ASME B 16.5 / MSS SP 44 / ASME B 16.47 / EN 10213

Butt Welding:
ASME B 16.25

Testing:
API 598

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials based on customer requirements.

Trims:
Multiple trim combinations available.

Operators:
Handwheel, Gear, Chain Wheel Pulley, Electrical Motor Actuator.

Notes:
• Oval Flat Body-Bonnet Joint for 150 lbs
• Male-Female Body-Bonnet Joint for ratings ≥ 300 lbs
• RTJ Joints available upon request
• RTJ Body-Bonnet Joints for ratings ≥ 1500 lbs (standard)

Optional Accessories:
Electrical & Geared Drive, Bypass Arrangement, Floor Stand, Double Disc Gate, Cone Guided Slab Gate

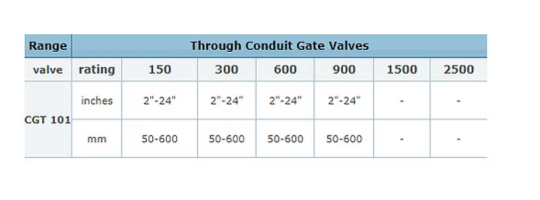

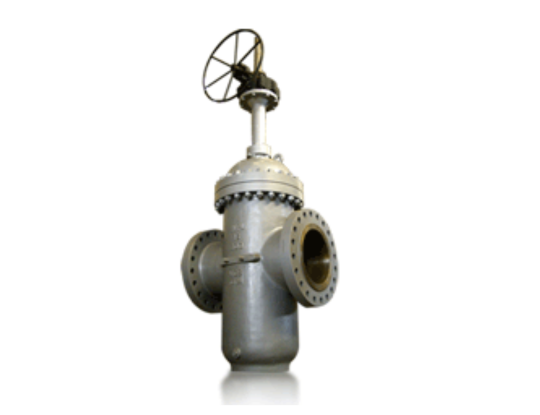

Through Conduit Gate Valve CGT 101 Series Through Conduit Gate Valve Size Chart

THROUGH CONDUIT GATE VALVES (CGT 101 Series)

Design Standards:
API 6D / ASME B16.34

Face to Face:
ASME B 16.10 / API 6D

Flanges:
ASME B 16.5 / MSS SP 44 / ASME B 16.47

Butt Welding:
ASME B 16.25

Testing:
API 598 / API 6D

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Multiple trim combinations available.

Operators:
Handwheel, Gear, Chain Wheel Pulley, Electrical Motor Actuator.

Notes:
• Oval Flat Body-Bonnet Joint for 150 lbs
• Male-Female Body-Bonnet Joint for ratings ≥ 300 lbs
• RTJ Joints available upon request
• RTJ Body-Bonnet Joint for ratings ≥ 1500 lbs (standard)

Optional Accessories:
Electrical & Geared Drive, Bypass Arrangement, Floor Stand, Expandable Slab Design

GLOBE VALVES

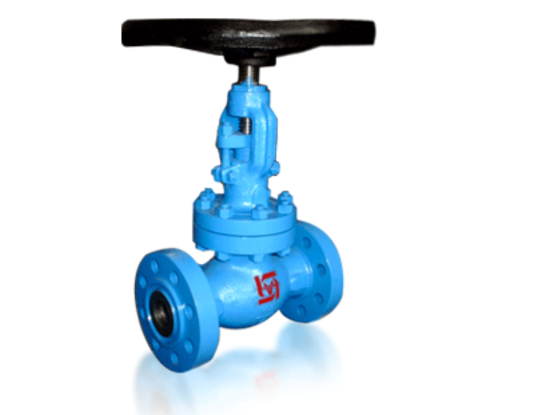

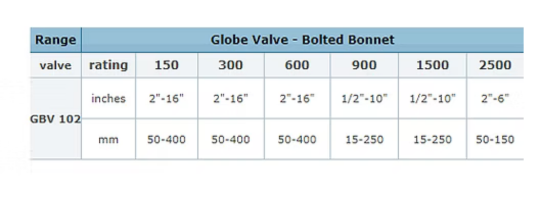

Globe Valve GBV 102 Series Globe Valve Size Chart

GLOBE VALVES (GBV 102 Series)

Design Standards:
BS 1873 / ISO 15761

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / EN 12266 (Part 1 & 2)

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Multiple trim combinations available.

Operators:
Handwheel, Gear, Electrical Motor, Pneumatic Actuator.

Notes:
• RTJ Joints available on request
• RTJ Body-Bonnet Joints for ratings ≥ 1500 lbs (standard)

Optional Accessories:
Electrical & Geared Drive, Bypass Arrangement, Floor Stand

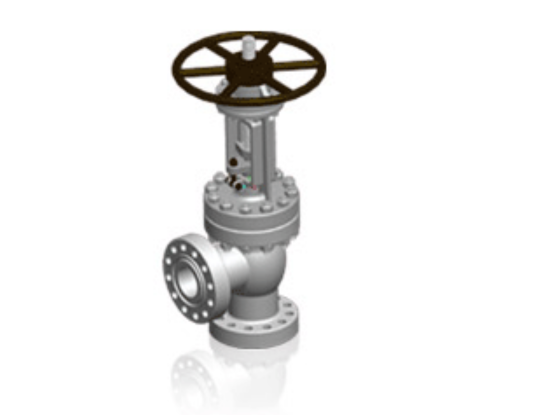

Angle Globe Valve AGV 102 Series Angle Globe Valve Size Chart

ANGLE GLOBE VALVES (AGV 102 Series)

Design Standards:
BS 1873 / ISO 15761

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / EN 12266 (Part 1 & 2)

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and any other special material on request.

Trims:
Various combinations available.

Operators:
Handwheel, Gear, Electrical Motor, Pneumatic Actuator.

Notes:
• RTJ Joints available on request
• RTJ Body-Bonnet Joints for ratings ≥ 1500 lbs (standard)

Optional Accessories:
Electrical & Geared Drive

CHECK VALVES

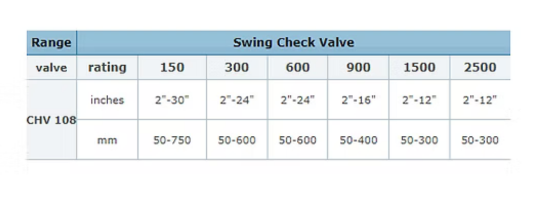

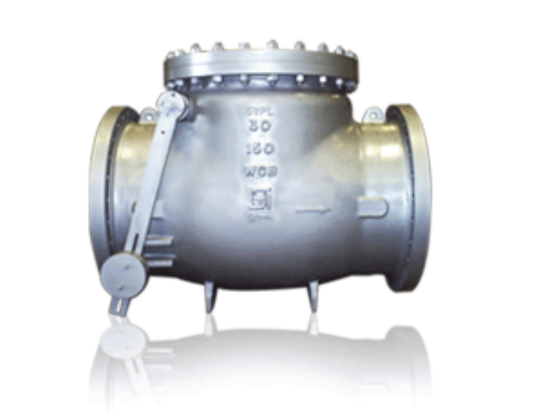

Swing Check Valve CHV 108 Series Swing Check Valve Size Chart

SWING CHECK VALVE (CHV 108 Series)

Design Standards:
BS 1868 / API 6D / ISO 15761

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / EN 12266 (Part 1 & 2) / API 6D

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Multiple combinations available.

Operator:
–

Notes:
• Bolted cover
• Male-Female Body Bonnet Joint for ratings ≤ 900 lbs
• RTJ Joints available on request
• RTJ Body-Bonnet Joints for ratings ≥ 1500 lbs (standard)

Optional Accessories:
Bypass arrangement, Dashpot / Hydraulic Non-Slam Arrangement

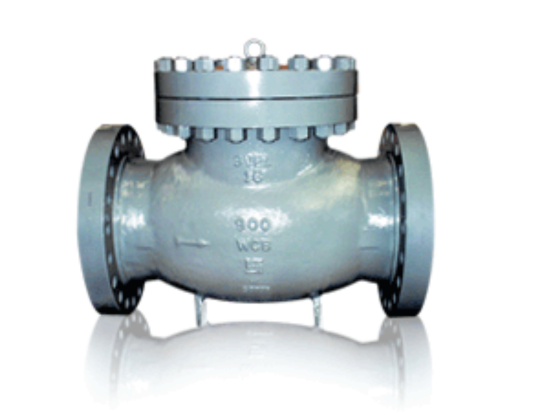

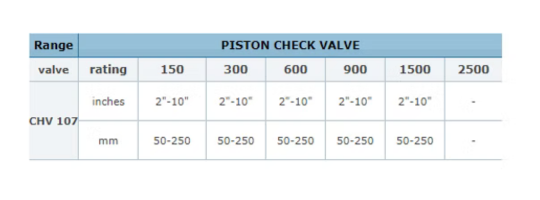

Piston Check Valve CHV 107 Series Piston Check Valve Size Chart

PISTON CHECK VALVE (CHV 107 Series)

Design Standards:
BS 1868 / ISO 15761

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / EN 12266 (Part 1 & 2)

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available.

Operator:
–

Notes:
• Bolted cover
• Male-Female Body-Bonnet Joint for ratings ≤ 900 lbs
• RTJ Joints available on request
• RTJ Body-Bonnet Joints for ratings ≥ 1500 lbs (standard)

Optional Accessories:
Bypass Arrangement, Non-Slam Arrangement

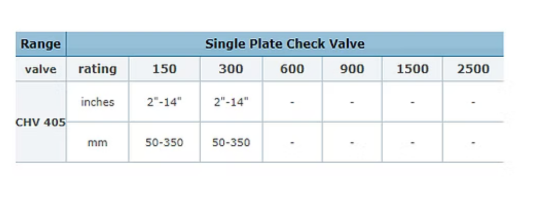

Single Plate Check Valve Soft Seated CHV 405 Series Single Plate Check Valve Soft Seated Size Chart

SINGLE PLATE CHECK VALVE – SOFT SEATED (CHV 405 Series)

Design Standards:
API 6D / ASME B 16.34

Face to Face:
API 6D

Flanges:
–

Butt Welding:
–

Testing:
API 6D / API 598

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials as required.

Trims:
Various combinations available.

Operator:
–

Notes:
• Soft Seated
• Soft seat for tight shut-off
• Lesser weight
• Smaller size and requires lesser force to open

Optional:
–

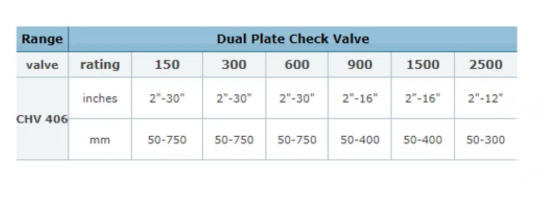

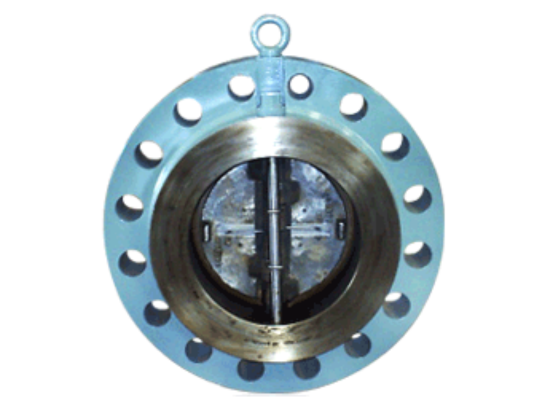

Dual Plate Check Valve Metal Seated CHV 406 Series Dual Plate Check Valve Metal Seated Size Chart

DUAL PLATE CHECK VALVE - METAL SEATED (CHV 406 Series)

Design Standards:
API 6D / API 594 / ASME B 16.34

Face to Face:
API 6D / API 594

Flanges:
–

Butt Welding:
–

Testing:
API 6D / API 598

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available.

Operator:
–

Notes:
• Lesser weight
• Smaller size
• Requires lesser force to open

Optional:
Replacement of conventional check valves without pipeline modification,
Retainerless Design

BALL VALVES

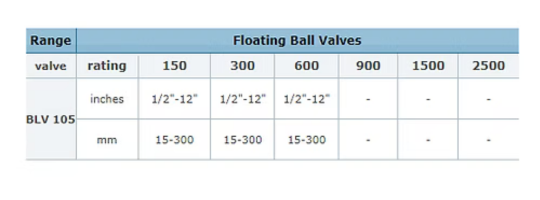

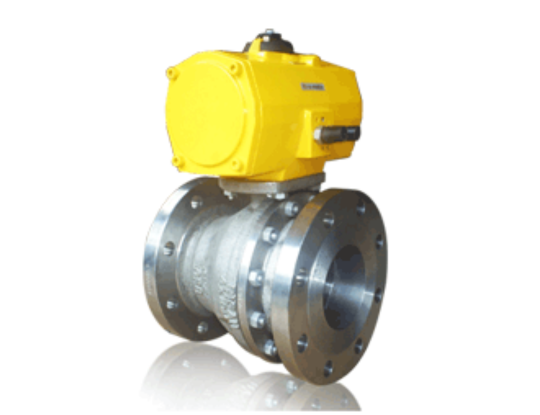

Floating Ball Valve BLV 105 Series Floating Ball Valve Size Chart

FLOATING BALL VALVES (BLV 105 Series)

Design Standards:
API 608 / BS 5351

Face to Face:
ASME B 16.10 / API 6D

Flanges:
ASME B 16.5

Butt Welding:
–

Testing:
API 598 / EN 12266 (Part 1 & 2) / API 6D

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available.

Operator:
–

Notes:
• Fire safe design
• Two-piece design
• Full bore and Reduced bore construction
• Bolted / Screwed gland
• Actuator mounting flange (ISO 5211)
• Antistatic feature
• Anti blow-out stem
• Solid ball construction

Optional:
Single Acting / Double Acting Air Actuator,
Quarter Turn Motor Actuator,
Gear Drive,
Position Indicator,
Limit Switch,
Extended Bonnet,
Extended Stem

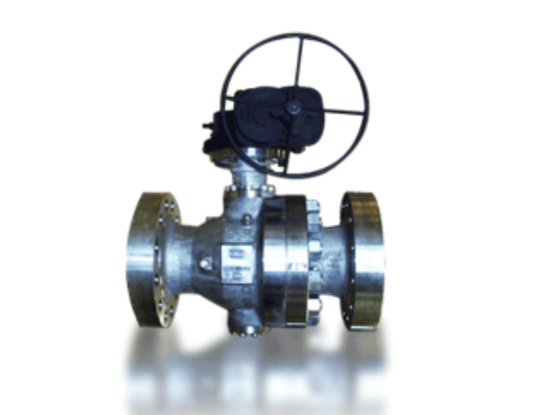

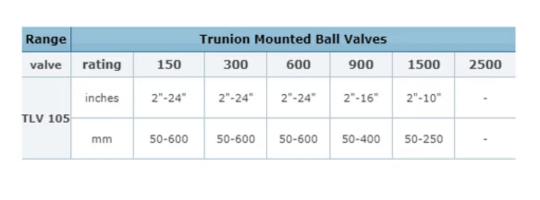

Trunnion Mounted Ball Valve TLV 105 Series Trunnion Mounted Ball Valve Size Chart

TRUNNION MOUNTED BALL VALVES (TLV 105 Series)

Design Standards:
API 6D / API 608 / BS 5351

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / BS 6755 Part I / API 6D

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available.

Operator:
–

Notes:
• Fire safe design
• Two-piece design
• Full bore and Reduced bore construction
• Bolted gland
• Actuator mounting flange (ISO 5211)
• Antistatic feature
• Anti blow-out stem
• Solid ball construction

Optional:
Single Acting / Double Acting Air Actuator,
Quarter Turn Motor Actuator,
Gear Drive,
Position Indicator,
Limit Switch,
Extended Bonnet,
Extended Stem

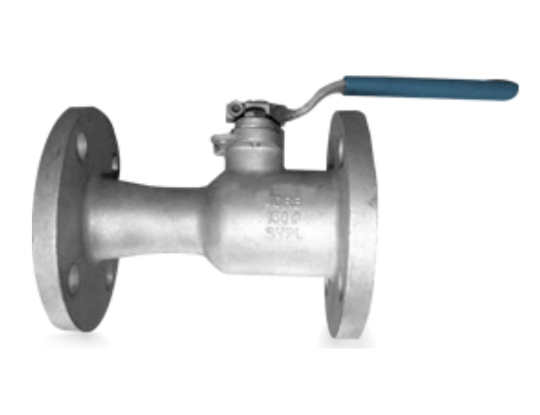

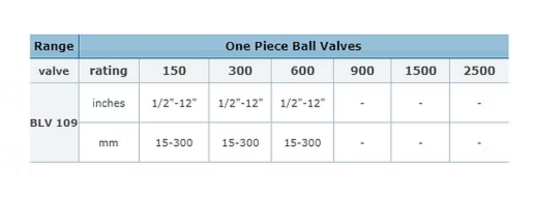

One Piece Ball Valve BLV 109 Series One Piece Ball Valve Size Chart

ONE PIECE BALL VALVES (BLV 109 Series)

Design Standards:
API 608 / BS 5351

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / EN 12266 (Part 1 & 2) / API 6D

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available.

Operator:
–

Notes:
• Fire safe design
• Reduced bore construction
• Bolted / Screwed gland
• Actuator mounting flange (ISO 5211)
• Antistatic feature
• Anti blow-out stem
• Solid ball construction

Optional:
Single Acting / Double Acting Air Actuator,
Quarter Turn Motor Actuator,
Gear Drive,
Position Indicator,
Limit Switch,
Extended Bonnet,
Extended Stem

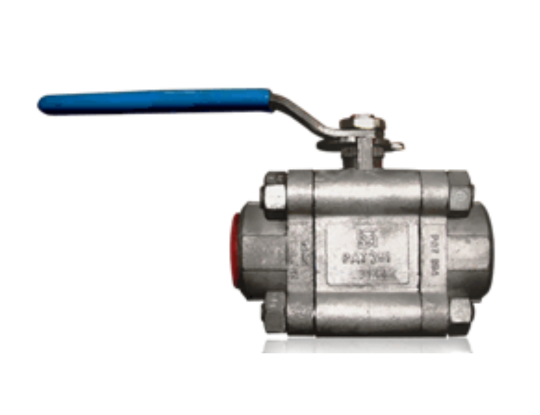

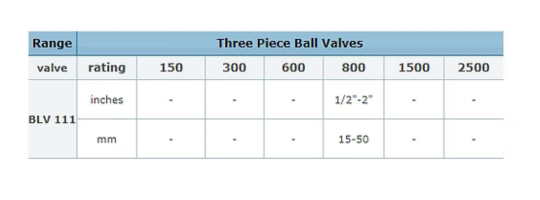

Three Piece Ball Valve BLV 111 Series Three Piece Ball Valve Size Chart

THREE PIECE BALL VALVES (BLV 111 Series)

Design Standards:
BS 5351

Face to Face:
Manufacturer's Standard

Flanges:
–

Butt Welding:
–

Testing:
EN 12266 (Part 1 & 2)

Material Options:
Carbon Steel, Alloy Steel, Stainless Steel, and other special materials as required.

Trims:
Multiple combinations available.

Operator:
Hand Wheel, Gear, Electrical Actuator

Notes:
• Fire safe design
• Three-piece construction
• Full bore and Reduced bore construction
• Bolted / Screwed gland
• ISO 5211 Actuator mounting flange
• Antistatic feature
• Anti blow-out stem
• Solid ball

Optional:
Single Acting / Double Acting Air Actuator,
Quarter Turn Motor Actuator

PRESSURE SEAL VALVES

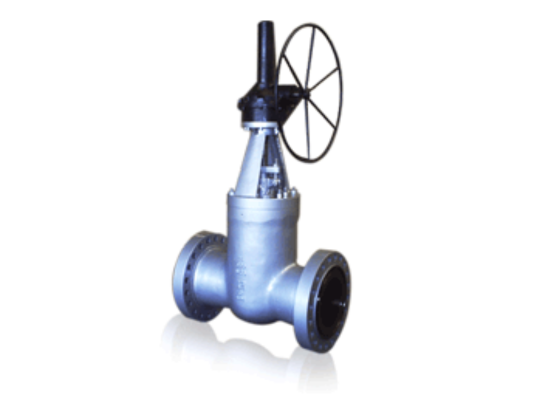

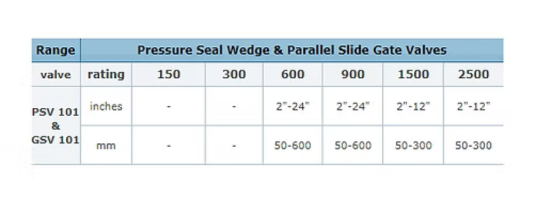

Pressure Seal Wedge & Parallel Slide Gate Valves PSV 101 & GSV 101 Series Pressure Seal Gate Valve Size Chart

PRESSURE SEAL WEDGE & PARALLEL SLIDE GATE VALVES
(PSV 101 & GSV 101 Series)

Design Standards:
API 600 / ASME B 16.34

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / EN 12266 (Part 1 & 2)

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available.

Operator:
Hand Wheel, Gear, Electrical Actuator

Notes:
• OS & Y Design
• SS inlay on sealing zone for carbon steel valves

Optional:
Electrical & Geared Drive, Bypass Arrangement

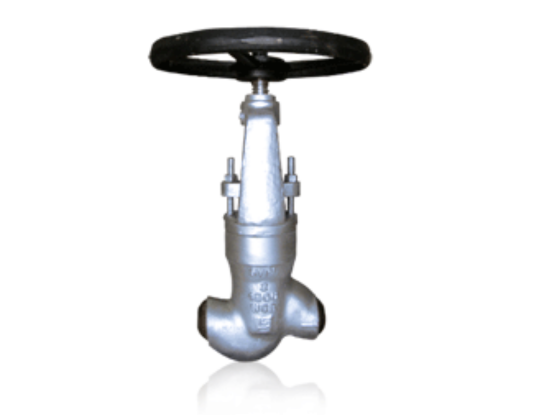

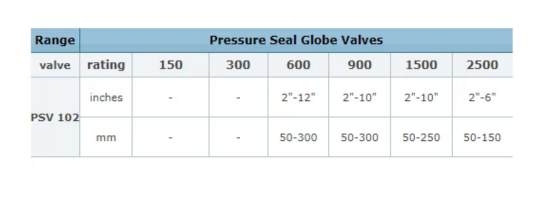

Pressure Seal Globe Valve PSV 102 Series Pressure Seal Globe Valve Size Chart

PRESSURE SEAL GLOBE VALVES (PSV 102 Series)

Design Standards:
BS 1873 / ASME B 16.34

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / EN 12266 (Part 1 & 2)

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available.

Operator:
Hand Wheel, Gear, Electrical Actuator

Notes:
• OS & Y Type
• SS inlay on sealing zone for carbon steel valves

Optional:
Electrical & Geared Drive, Bypass Arrangement

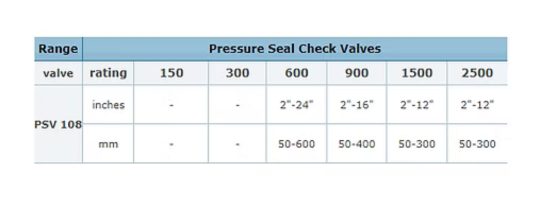

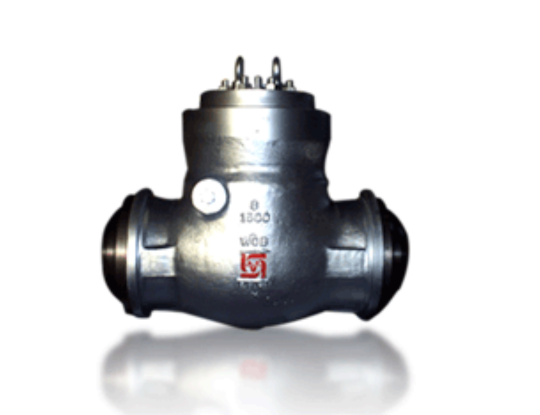

Pressure Seal Check Valve PSV 108 Series Pressure Seal Check Valve Size Chart

PRESSURE SEAL CHECK VALVES (PSV 108 Series)

Design Standards:
BS 1868 / API 6D / ASME B 16.34

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Testing:
API 598 / EN 12266 (Part 1 & 2)

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, and other special materials on request.

Trims:
Various combinations available.

Operator:
Hand Wheel, Gear, Electrical Actuator

Notes:
• OS & Y Design
• SS inlay on the sealing zone for carbon steel valves

Optional:
Electrical & Geared Drive, Bypass Arrangement

PRESSURE SEAL VALVES

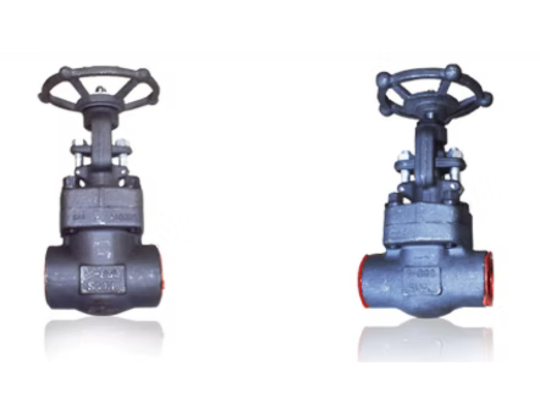

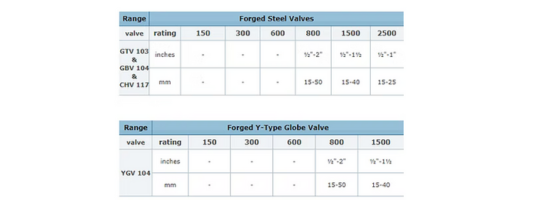

Gate Valve GTV 103 / Globe Valve GBV 104 Gate & Globe Valves Size Chart

Gate Valves (GTV 103 Series)
Globe Valves (GBV 104 Series)

Design Standards:
API 602 / BS 5352 / ISO 15761

Face to Face:
–

Flanges:
–

Butt Welding:
–

Testing:
API 598 / EN 12266 (Part 1 & 2)

End Connections:
ASME B 16.11 / ASME B 1.20.1

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Stainless Steel, and other special materials as required.

Trims:
Multiple combinations available.

Operator:
Hand Wheel, Gear, Electrical Actuator

Notes:
• OS & Y Type
• Bolted Bonnet or Welded Bonnet
• Full bore or Reduced bore options
• Molded pre-compressed graphite ring packing

Optional:
Alternate Stainless Steel Investment Cast Valves,
Welded-on / Integral Flanged Ends,
Seal-Welded Bonnet,
Extended Bonnet,
Bellow-Sealed Bonnet

BELLOW SEAL VALVES

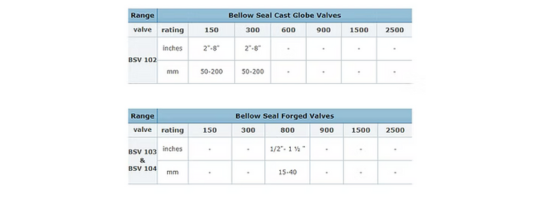

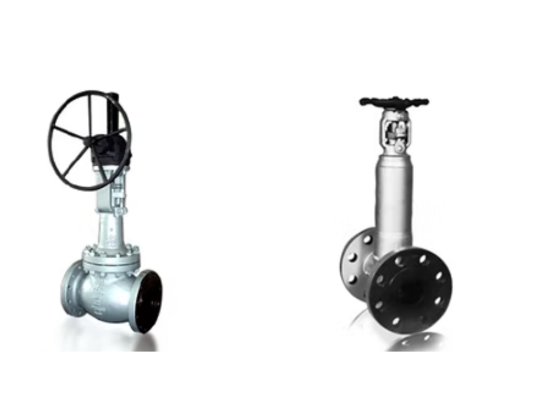

Cast Globe Valves BSV 102 Series Cast Globe Valve Size Chart

Cast Globe Valves (BSV 102 Series)

Design Standards:
BS 1873 / BS 5352 / API 602

Face to Face:
ASME B 16.10

Flanges:
ASME B 16.5

Butt Welding:
ASME B 16.25

Screwed End:
ASME B 1.20.1

Socket End:
ASME B 16.11

Testing:
EN 12266 (Part 1 & 2) / API 598

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Stainless Steel, and other special materials based on requirement.

Trims:
Multiple combinations available.

Operator:
Hand Wheel, Gear

Notes:
• OS & Y Type
• Bolted or Sealed Bonnet
• Full Bore or Reduced Bore
• Long life cycle (10,000 cycles) tested bellows
• Back seat & gland seal arrangement
• Guided plug & stem with non-torsion bellows
• Body testing as per bellow pressure–temperature rating

Optional:
Leak detecting arrangement

SLURRY VALVES

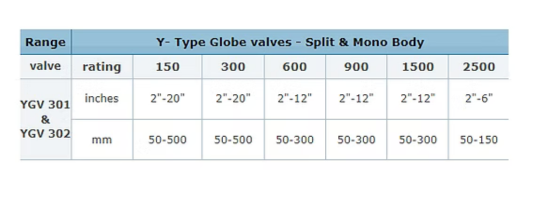

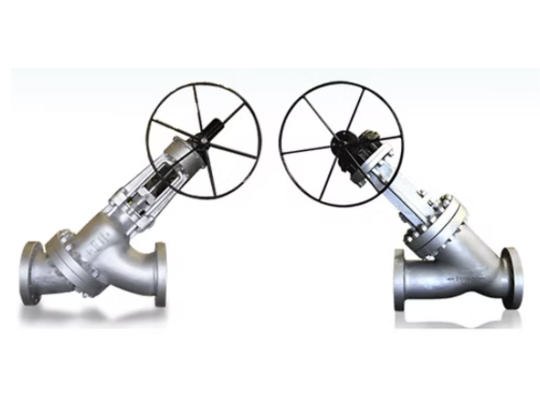

Y-Type Globe Valves YGV 301 & YGV 302 Series Y-Type Globe Valve Size Chart

Y - TYPE GLOBE VALVES (SPLIT & MONO BODY)
(YGV 301 & YGV 302 Series)

Design Standards:
BS 5160 / BS 1873 / ASME B 16.34

Face to Face:
–

Flanges:
ASME B 16.5 / DIN 2500 Series / EN 10213

Butt Welding:
–

Testing:
EN 12266 (Part 1)

Material Options (ASTM Specifications):
Available in various grades depending on application.

Trims:
Multiple combinations available.

Operator:
–

Notes:
–

Optional:
• Gear Drive
• Split Body (Reduced Bore)
• Mono Body (Full Bore)

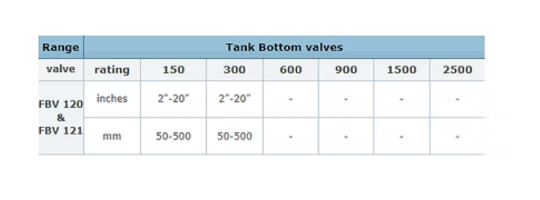

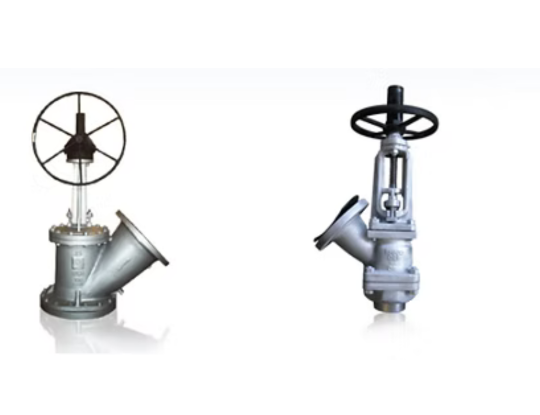

Tank Bottom Valves FBV 120 & FBV 121 Series Tank Bottom Valve Size Chart

TANK BOTTOM VALVES
(FBV 120 & FBV 121 Series)

Design Standards:
Manufacturer's Standard / ASME B 16.34

Face to Face:
–

Flanges:
ASME B 16.5 (Outlet)
DIN 2500 Series & Manufacturer’s Standard (Inlet)

Butt Welding:
–

Testing:
EN 12266 (Part 1)

Material Options (ASTM Specifications):
Various material grades available as per application.

Trims:
Multiple combinations available.

Operator:
–

Notes:
–

Optional:
• Gear Drive
• Flush Bottom (Open to Tank / Valve) (FBV118 / FBV119)

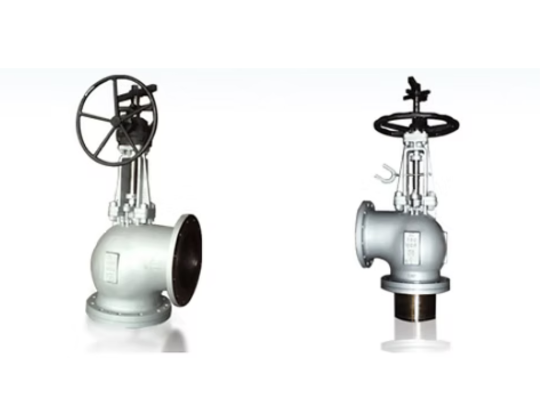

Angle Valves AGV 303 / Bayonet Valves AFV 123 Angle & Bayonet Valve Size Chart

ANGLE VALVES (AGV 303 Series)
BAYONET VALVES (AFV 123 Series)

Design Standards:
BS 5160 / BS 1873 / ASME B 16.34

Face to Face:
–

Flanges:
ASME B 16.5 / DIN 2500 Series / EN 10213

Butt Welding:
–

Testing:
EN 12266 (Part 1)

Material Options (ASTM Specifications):
Available in multiple ASTM grades based on application.

Trims:
Varieties of combinations available.

Operator Options:
Handwheel, Gear, Chain Wheel Pulley, Electrical Motor, Pneumatic Actuator

Notes:
• Bolted cover
• Screwed cover for 15 & 20 mm sizes
• Large straining screen with lowest pressure drop

Optional:
• Gear Drive
• Angle Check Valve (ACV 123)
• 3-Way Angle Valve (ATV 303)

STRAINERS

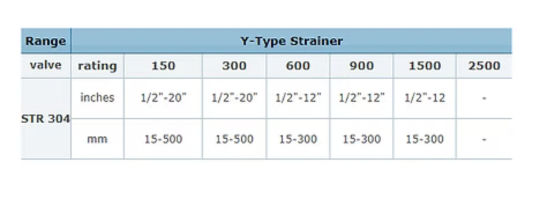

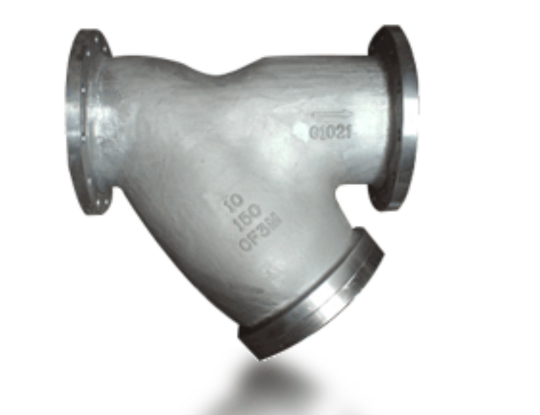

Y-Type Strainer STR 304 Series Y-Type Strainer Size Chart

Y-TYPE STRAINER (STR 304 Series)

Design Standards:
Manufacturer's Standard

Face to Face:
–

Flanges:
ASME B 16.5

Butt Welding:
–

Testing:
API 598

Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Stainless Steel, and other special materials based on application.

Trims:
Varieties of combinations available.

Operator Options:
Handwheel, Gear, Chain Wheel Pulley, Electrical Motor, Pneumatic Actuator

Notes:
• Bolted cover
• Screwed cover for 15 & 20 mm sizes
• Large straining screen with lowest pressure drop

Optional:
• Quick Opening Arrangement
• Differential Pressure Gauges

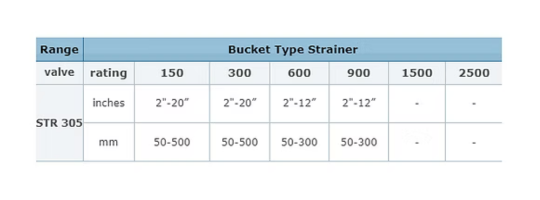

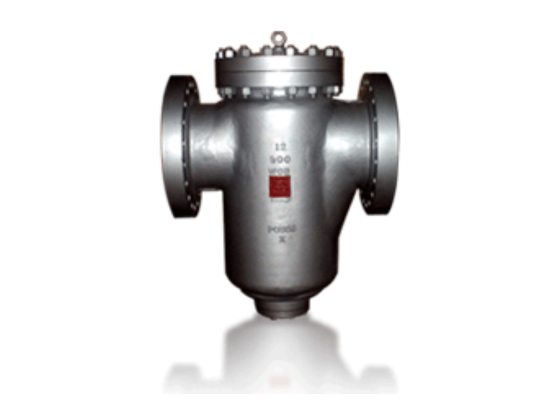

Bucket Type Strainer STR 305 Series Bucket Type Strainer Size Chart

BUCKET TYPE STRAINER (STR 305 Series)

Design Standards:
Manufacturer's Standard
Face to Face:

Flanges:
ASME B 16.5
Butt Welding:

Testing:
API 598
Material Options (ASTM Specifications):
Carbon Steel, Alloy Steel, Stainless Steel, and other special materials based on requirements.
Trims:
Various combinations available.
Operator Options:
Handwheel, Gear, Chain Wheel Pulley, Electrical Motor, Pneumatic Actuator
Notes:
• Bolted cover
• Screwed cover for 15 & 20 mm sizes
• Large straining screen with lowest pressure drop
Optional:
• Quick Opening Arrangement
• Differential Pressure Gauges
